解决Spring Data LDAP中Projection查询@Attribute字段返回空值的问题
· 7 min read
Spring Data LDAP是Spring Data项目的子项目，提供了面向LDAP存储库的Spring Data规范实现。
它让开发者可以像使用Spring Data JPA一样操作LDAP，支持Entity、Repository和Projection等功能。
问题出现在使用Projection投影查询实体的特定字段时：当实体字段使用@Attribute注解进行字段映射时，查询结果中相关字段值为空。
问题描述
以下场景演示了该问题：
Ldap数据库内容
# base dn
dn: dc=fastonetech,dc=com
objectClass: dcObject
objectClass: organization
objectClass: top
dc: fastonetech
o: fastonetech
# ou => groups
dn: ou=groups,dc=fastonetech,dc=com
objectClass: organizationalUnit
objectClass: top
ou: groups
# group {tom}
dn: cn=tom,ou=groups,dc=fastonetech,dc=com
objectClass: top
objectClass: posixGroup
cn: tom
gidNumber: 1001
memberUid: tom
# group {tim}
dn: cn=tim,ou=groups,dc=fastonetech,dc=com
objectClass: top
objectClass: posixGroup
cn: tim
gidNumber: 1002
memberUid: tim
# group {joy}
dn: cn=joy,ou=groups,dc=fastonetech,dc=com
objectClass: top
objectClass: posixGroup
cn: joy
gidNumber: 1003
memberUid: joy
实体类定义
@Data
@Entry(base = "ou=groups", objectClasses = {"posixGroup", "top"})
public final class LdapGroup {
@Id
private Name dn;
@Attribute(name = "cn")
@DnAttribute(value = "cn", index = 1)
private String name;
@Attribute(name = "gidNumber")
private Integer groupId;
@Attribute(name = "memberUid")
private Set<String> members = new HashSet<>();
public void addMember(String member) {
members.add(member);
}
public boolean isOwnerGroup() {
return members.contains(this.name) && this.members.size() == 1;
}
public boolean isEmpty() {
return members.isEmpty();
}
public void removeMember(String member) {
members.remove(member);
}
}
Projection接口定义
定义两个Projection接口进行测试，都只查询groupId字段：
interface LdapGroupRepositoryClassBasedProjection extends LdapRepository<LdapGroup> {
record LdapGroupOnlyGroupId(Integer groupId) {
}
List<LdapGroupRepositoryClassBasedProjection.LdapGroupOnlyGroupId> findByGroupIdIsNotNull();
}
interface LdapGroupRepositoryInterfaceBasedProjection extends LdapRepository<LdapGroup> {
interface LdapGroupOnlyGroupId {
Integer getGroupId();
}
List<LdapGroupRepositoryInterfaceBasedProjection.LdapGroupOnlyGroupId> findByGroupIdIsNotNull();
}
测试类
测试代码期望通过Projection查询到三个groupId值（1001、1002、1003），但实际返回0个结果：
class Test {
@Test
void testLdapProjectionInterfaces() {
assertThat(ldapGroupRepositoryClassBasedProjection.count()).isEqualTo(3);
var classBasedProjection = ldapGroupRepositoryClassBasedProjection.findByGroupIdIsNotNull();
var classBasedProjectionGroupIds = classBasedProjection.stream().map(LdapGroupRepositoryClassBasedProjection.LdapGroupOnlyGroupId::groupId).filter(Objects::nonNull).collect(Collectors.toSet());
assertThat(classBasedProjectionGroupIds).hasSize(3); // 预期 3，实际0
assertThat(ldapGroupRepositoryInterfaceBasedProjection.count()).isEqualTo(3);
var interfaceProjection = ldapGroupRepositoryInterfaceBasedProjection.findByGroupIdIsNotNull();
var interfaceProjectionGroupIds = interfaceProjection.stream().map(LdapGroupRepositoryInterfaceBasedProjection.LdapGroupOnlyGroupId::getGroupId).filter(Objects::nonNull).collect(Collectors.toSet());
assertThat(interfaceProjectionGroupIds).hasSize(3); // 预期 3，实际0
}
}
原因分析
通过断点调试Spring Data LDAP的查询过程来分析问题原因。在Spring Data LDAP中，所有与LDAP服务器的交互都通过LdapTemplate完成，因此在org.springframework.ldap.core.LdapTemplate类的search方法上设置断点：
public <T> List<T> search(Name base, String filter, SearchControls controls,
ContextMapper<T> mapper, DirContextProcessor processor)

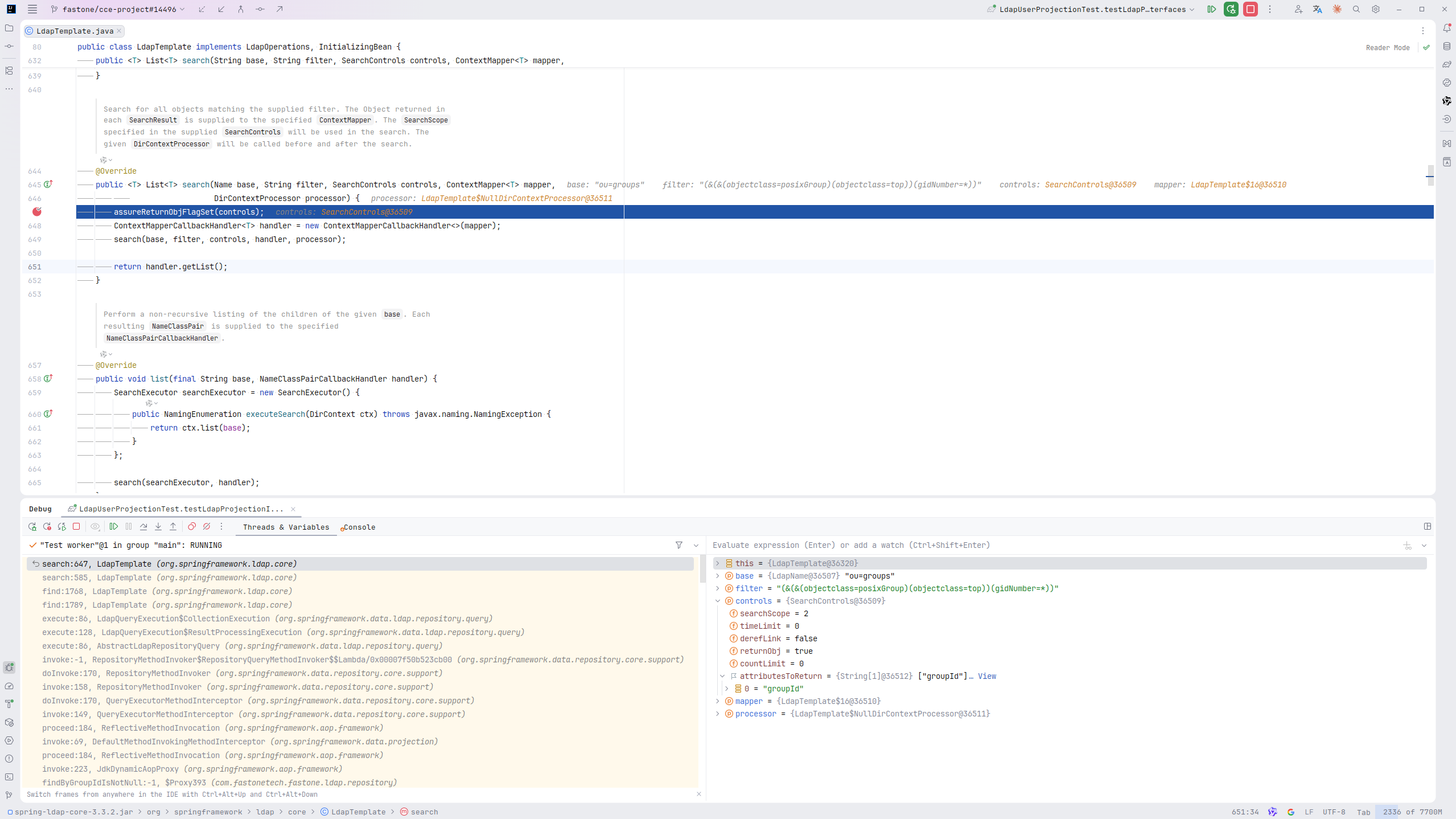

从调试信息可以看到controls.attributes值为["groupId"]，这是问题所在：groupId在LDAP中对应的字段名应该是gidNumber。
/**
* Contains the list of attributes to be returned in
* {@code SearchResult} for each matching entry of search. {@code null}
* indicates that all attributes are to be returned.
* @serial
*/
private String[] attributesToReturn;
attributesToReturn字段用于控制LDAP返回哪些字段，问题在于上层传递该值时没有进行字段映射转换。
跟踪该值的传递流程，定位到LdapTemplate.searchControlsForQuery方法中的query.attributes()：
public class LdapTemplate implements LdapOperations, InitializingBean {
private SearchControls searchControlsForQuery(LdapQuery query, boolean returnObjFlag) {
SearchControls searchControls = getDefaultSearchControls(this.defaultSearchScope, returnObjFlag,
query.attributes());
if (query.searchScope() != null) {
searchControls.setSearchScope(query.searchScope().getId());
}
if (query.countLimit() != null) {
searchControls.setCountLimit(query.countLimit());
}
if (query.timeLimit() != null) {
searchControls.setTimeLimit(query.timeLimit());
}
return searchControls;
}
}
query.attributes()中的数据在LdapQueryCreator.create方法中创建：
class LdapQueryCreator extends AbstractQueryCreator<LdapQuery, ContainerCriteria> {
@Override
protected ContainerCriteria create(Part part, Iterator<Object> iterator) {
Entry entry = AnnotatedElementUtils.findMergedAnnotation(entityType, Entry.class);
LdapQueryBuilder query = query();
if (entry != null) {
query = query.base(entry.base());
}
if (!inputProperties.isEmpty()) {
query.attributes(inputProperties.toArray(new String[0]));
}
ConditionCriteria criteria = query.where(getAttribute(part));
return appendCondition(part, iterator, criteria);
}
}
值来自inputProperties，继续追踪发现它在PartTreeLdapRepositoryQuery.createQuery中设置：
public class PartTreeLdapRepositoryQuery extends AbstractLdapRepositoryQuery {
private final PartTree partTree;
private final ObjectDirectoryMapper objectDirectoryMapper;
public PartTreeLdapRepositoryQuery(LdapQueryMethod queryMethod, Class<?> entityType, LdapOperations ldapOperations,
MappingContext<? extends PersistentEntity<?, ?>, ? extends PersistentProperty<?>> mappingContext,
EntityInstantiators instantiators) {
super(queryMethod, entityType, ldapOperations, mappingContext, instantiators);
partTree = new PartTree(queryMethod.getName(), entityType);
objectDirectoryMapper = ldapOperations.getObjectDirectoryMapper();
}
@Override
protected LdapQuery createQuery(LdapParameterAccessor parameters) {
List<String> inputProperties = Collections.emptyList();
ReturnedType returnedType = getQueryMethod().getResultProcessor().withDynamicProjection(parameters)
.getReturnedType();
if (returnedType.needsCustomConstruction()) {
inputProperties = returnedType.getInputProperties();
}
org.springframework.data.ldap.repository.query.LdapQueryCreator queryCreator = new LdapQueryCreator(partTree,
getEntityClass(), objectDirectoryMapper, parameters, inputProperties);
return queryCreator.createQuery();
}
}
关键代码段：
if (returnedType.needsCustomConstruction()) {
inputProperties = returnedType.getInputProperties();
}
在Projection场景下，needsCustomConstruction()返回true，returnedType.getInputProperties()返回Projection声明的字段名。
问题根源在于Spring Data LDAP没有对Projection字段进行实体到LDAP的字段映射。我们的映射定义：
@Attribute(name = "gidNumber")
private Integer groupId;
解决方案
解决方案是在LdapQueryCreator.create方法中添加字段映射处理。该类的getAttribute方法已经处理其他场景的映射：
private String getAttribute(Part part) {
PropertyPath path = part.getProperty();
if (path.hasNext()) {
throw new IllegalArgumentException("Nested properties are not supported");
}
return mapper.attributeFor(entityType, path.getSegment());
}
通过mapper.attributeFor可以获取实体字段映射后的LDAP字段名。修改create方法来支持映射：
@Override
protected ContainerCriteria create(Part part, Iterator<Object> iterator) {
Entry entry = AnnotatedElementUtils.findMergedAnnotation(entityType, Entry.class);
LdapQueryBuilder query = query();
if (entry != null) {
query = query.base(entry.base());
}
if (!inputProperties.isEmpty()) {
query.attributes(inputProperties.stream().map(prop -> mapper.attributeFor(entityType, prop)).toList().toArray(new String[0]));
}
ConditionCriteria criteria = query.where(getAttribute(part));
return appendCondition(part, iterator, criteria);
}
完整的修改代码如下。要在本地项目中应用此修复，可以创建同名类覆盖Spring的原始实现：
/*
* Copyright 2016-2025 the original author or authors.
*
* Licensed under the Apache License, Version 2.0 (the "License");
* you may not use this file except in compliance with the License.
* You may obtain a copy of the License at
*
* https://www.apache.org/licenses/LICENSE-2.0
*
* Unless required by applicable law or agreed to in writing, software
* distributed under the License is distributed on an "AS IS" BASIS,
* WITHOUT WARRANTIES OR CONDITIONS OF ANY KIND, either express or implied.
* See the License for the specific language governing permissions and
* limitations under the License.
*/
package org.springframework.data.ldap.repository.query;
import static org.springframework.ldap.query.LdapQueryBuilder.*;
import java.util.Iterator;
import java.util.List;
import org.springframework.core.annotation.AnnotatedElementUtils;
import org.springframework.data.domain.Sort;
import org.springframework.data.mapping.PropertyPath;
import org.springframework.data.repository.query.parser.AbstractQueryCreator;
import org.springframework.data.repository.query.parser.Part;
import org.springframework.data.repository.query.parser.PartTree;
import org.springframework.ldap.odm.annotations.Entry;
import org.springframework.ldap.odm.core.ObjectDirectoryMapper;
import org.springframework.ldap.query.ConditionCriteria;
import org.springframework.ldap.query.ContainerCriteria;
import org.springframework.ldap.query.LdapQuery;
import org.springframework.ldap.query.LdapQueryBuilder;
import org.springframework.util.Assert;
/**
* Creator of dynamic queries based on method names.
*
* @author Mattias Hellborg Arthursson
* @author Mark Paluch
*/
class LdapQueryCreator extends AbstractQueryCreator<LdapQuery, ContainerCriteria> {
private final Class<?> entityType;
private final ObjectDirectoryMapper mapper;
private final List<String> inputProperties;
/**
* Constructs a new {@link LdapQueryCreator}.
*
* @param tree must not be {@literal null}.
* @param entityType must not be {@literal null}.
* @param mapper must not be {@literal null}.
* @param parameterAccessor must not be {@literal null}.
* @param inputProperties must not be {@literal null}.
*/
LdapQueryCreator(PartTree tree, Class<?> entityType, ObjectDirectoryMapper mapper,
LdapParameterAccessor parameterAccessor, List<String> inputProperties) {
super(tree, parameterAccessor);
Assert.notNull(entityType, "Entity type must not be null");
Assert.notNull(mapper, "ObjectDirectoryMapper must not be null");
this.entityType = entityType;
this.mapper = mapper;
this.inputProperties = inputProperties;
}
@Override
protected ContainerCriteria create(Part part, Iterator<Object> iterator) {
Entry entry = AnnotatedElementUtils.findMergedAnnotation(entityType, Entry.class);
LdapQueryBuilder query = query();
if (entry != null) {
query = query.base(entry.base());
}
if (!inputProperties.isEmpty()) {
query.attributes(inputProperties.stream().map(prop -> mapper.attributeFor(entityType, prop)).toList().toArray(new String[0]));
}
ConditionCriteria criteria = query.where(getAttribute(part));
return appendCondition(part, iterator, criteria);
}
private ContainerCriteria appendCondition(Part part, Iterator<Object> iterator, ConditionCriteria criteria) {
Part.Type type = part.getType();
String value = null;
if (iterator.hasNext()) {
Object next = iterator.next();
value = next != null ? next.toString() : null;
}
switch (type) {
case NEGATING_SIMPLE_PROPERTY:
return criteria.not().is(value);
case SIMPLE_PROPERTY:
return criteria.is(value);
case STARTING_WITH:
return criteria.like(value + "*");
case ENDING_WITH:
return criteria.like("*" + value);
case CONTAINING:
return criteria.like("*" + value + "*");
case LIKE:
return criteria.like(value);
case NOT_LIKE:
return criteria.not().like(value);
case GREATER_THAN_EQUAL:
return criteria.gte(value);
case LESS_THAN_EQUAL:
return criteria.lte(value);
case IS_NOT_NULL:
return criteria.isPresent();
case IS_NULL:
return criteria.not().isPresent();
default:
throw new IllegalArgumentException(String.format("%s queries are not supported for LDAP repositories", type));
}
}
private String getAttribute(Part part) {
PropertyPath path = part.getProperty();
if (path.hasNext()) {
throw new IllegalArgumentException("Nested properties are not supported");
}
return mapper.attributeFor(entityType, path.getSegment());
}
@Override
protected ContainerCriteria and(Part part, ContainerCriteria base, Iterator<Object> iterator) {
ConditionCriteria criteria = base.and(getAttribute(part));
return appendCondition(part, iterator, criteria);
}
@Override
protected ContainerCriteria or(ContainerCriteria base, ContainerCriteria criteria) {
return base.or(criteria);
}
@Override
protected LdapQuery complete(ContainerCriteria criteria, Sort sort) {
return criteria;
}
}
